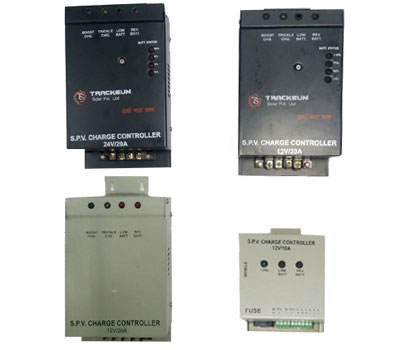

Product Details:

• Installation with ease.
• High efficient series PWM/ MPPT charging, increase battery life & increase the Solar system performance.
• Used MOSFET as an electronic switch, without any mechanical switch.

Protection:

• Battery Over charge,PV/ Battery reverse polarity , Reverse current flow, High current flow , High temperature , Overload, short circuit.
• Reverse protection with combination of Solar PV Module & battery.
• Gel, sealed & flooded battery type solution.

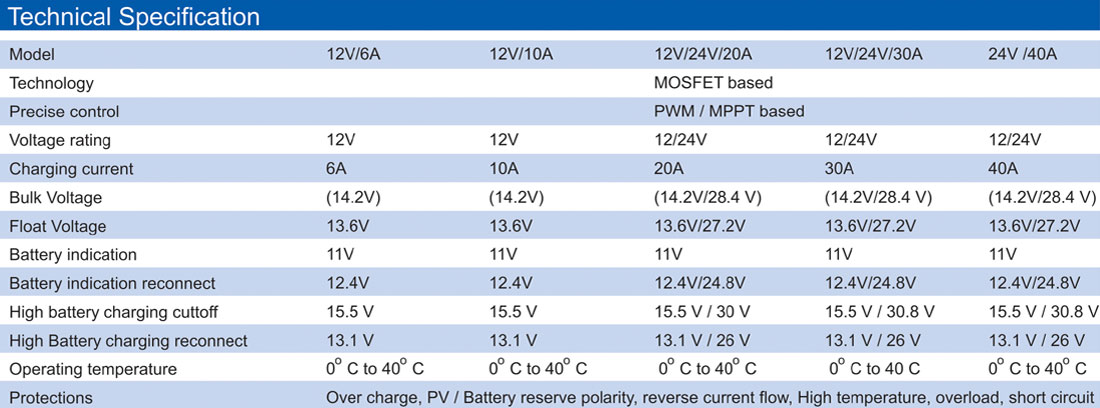

Available rating:

• 12 V/ 6A, 12 V/10A, 12 V/24 V/ 20 A, 12 V/24 V/ 30 A ,24 V/ 40 A and so on as per customer required specification.
